An important task of a ventilation system in the house is removing excess heat and unwanted gasses like CO2. The degree of ventilation depends on the age of the animals. The precise level of ventilation in the house is continually measured and controlled using the Fancom ATM unit.

  • Accurate Ventilation

  • Direction sensitive RPM feedback ensures wind influences cannot affect the measurement.

  • Easy mounting

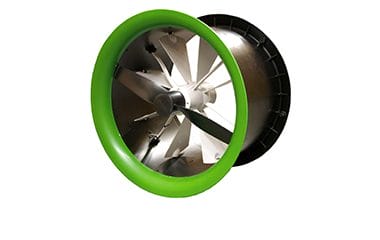

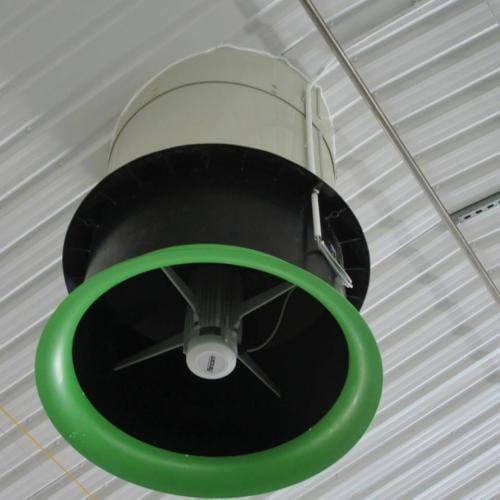

The ATM measuring and control unit is a dimensionally stable, chimney module with airflow transmitter and control valve. This module is mounted below the Fancom fan unit. With central exhaust, the ATM unit is mounted between the section and the central duct. The airflow transmitter continuously measures ventilation in the barn.

Available for chimney ventilation in the following sizes:

  • 14″, 16″, 18″, 20″ (35cm, 40cm, 45cm, 50cm)
  • 22″, 25″, 32″ (56cm, 63cm, 80cm)
