TPI offers a wide variety of chimney components which can be combined to fit solutions for each housing ventilation concept. TPI’s chimney component program is produced out of high quality polyurethane and thus guarantees high insulation values. This makes their chimneys suitable for use in all climate conditions. We offer our chimney components in two colors, our standard yellow and black.

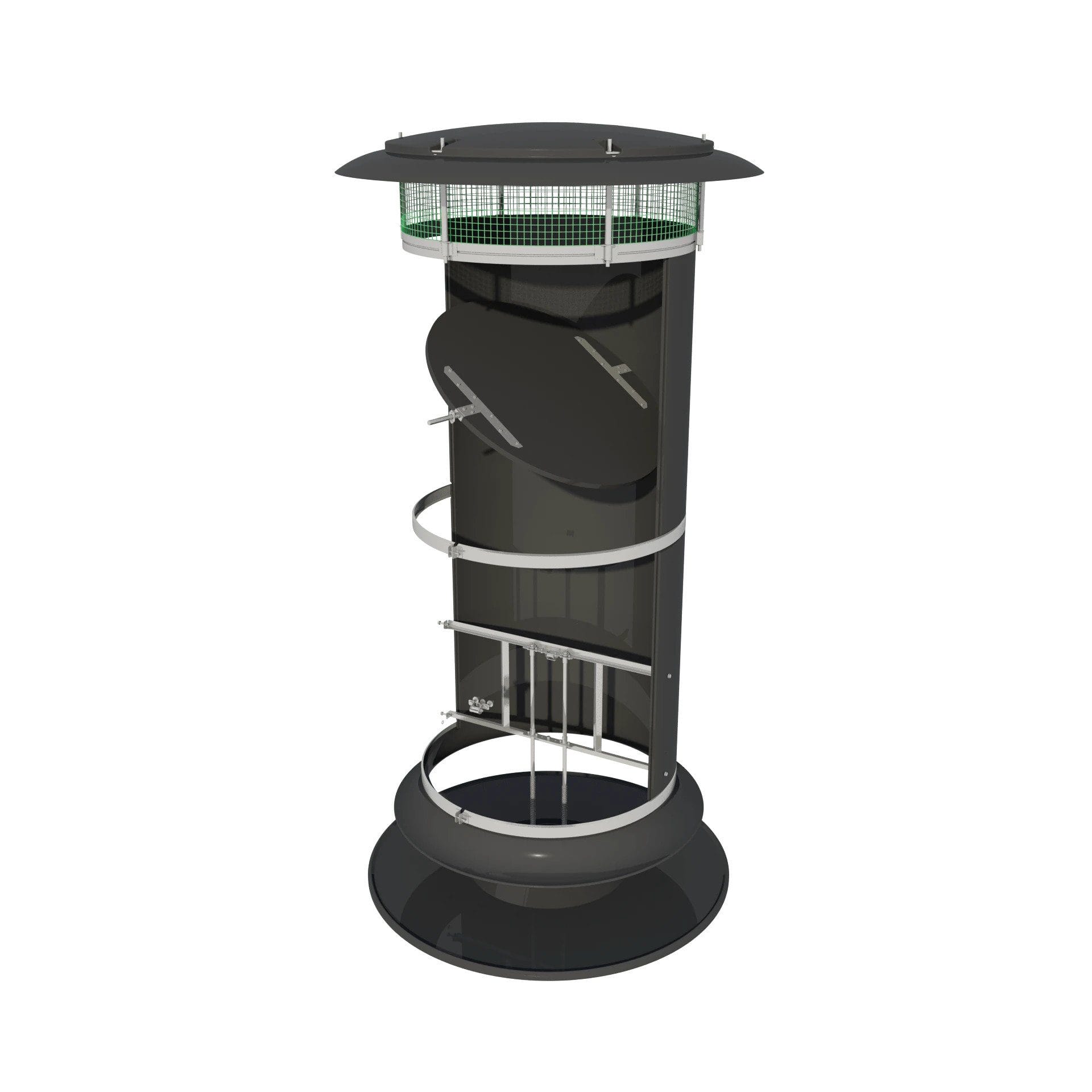

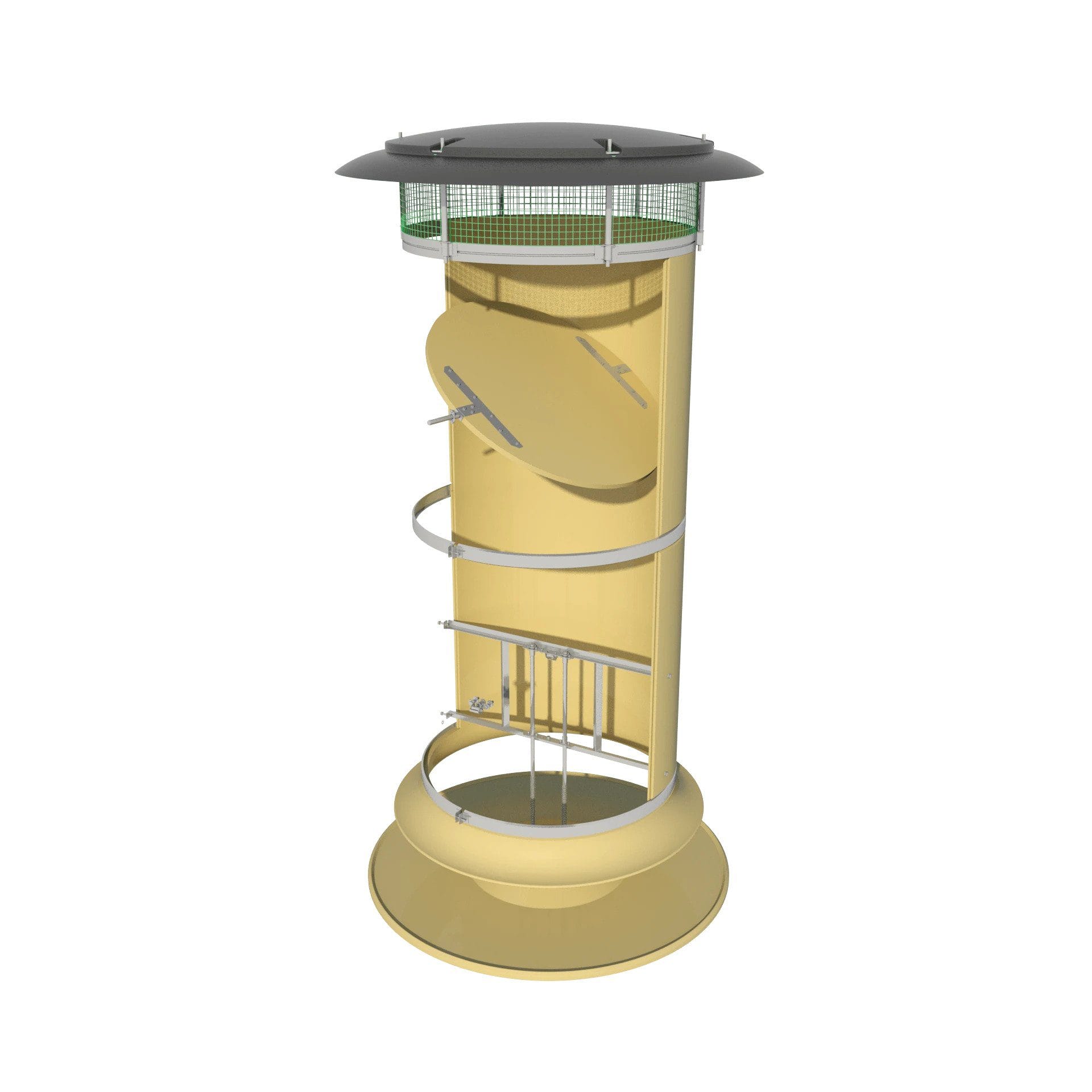

  • Adjustable Inlet Chimney
    Available 64cm, 72cm, 82cm, 92cm

  • Automatic Recirculation Chimney (Dynamic or Fixed)
    Available 64cm, 72cm, 82cm, 92cm

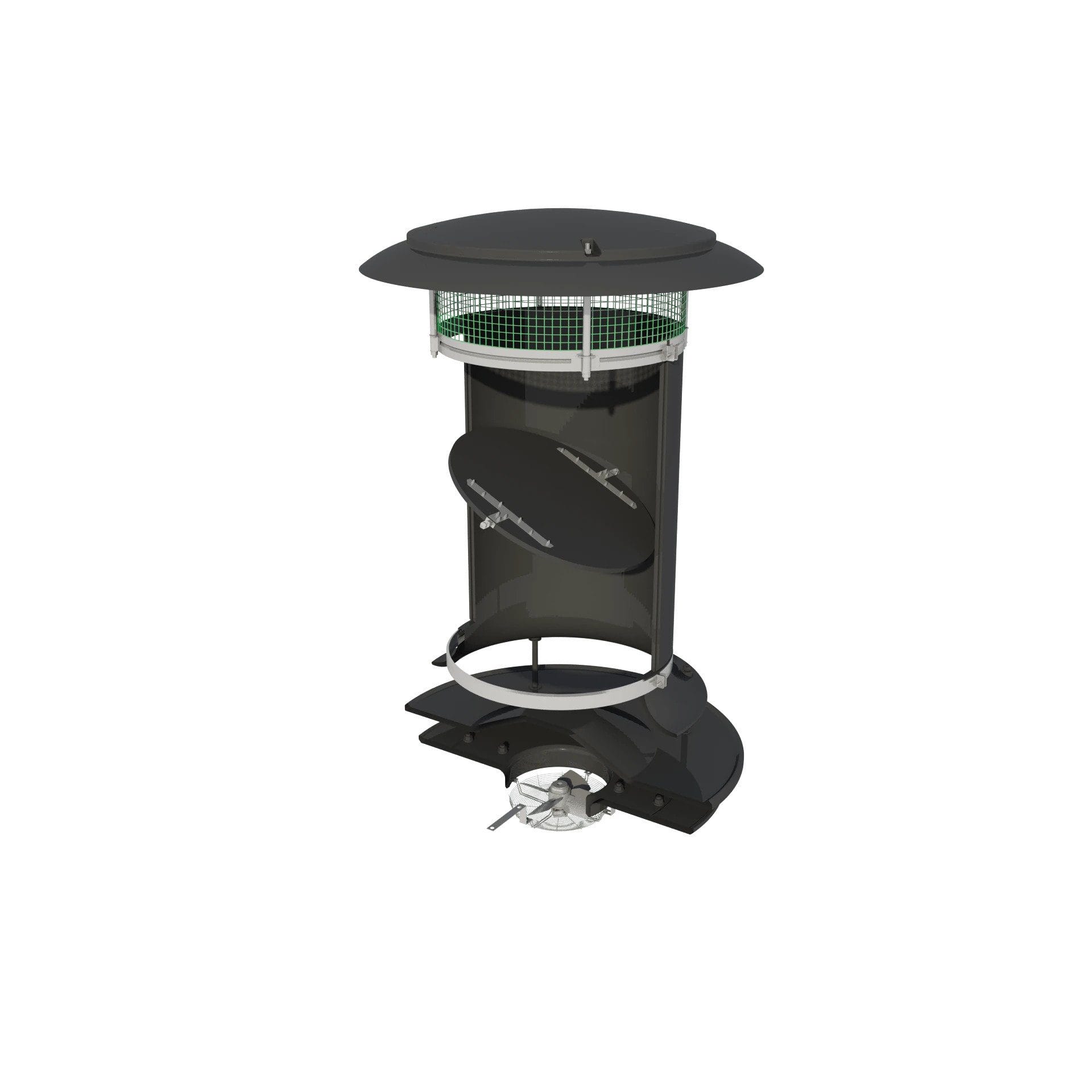

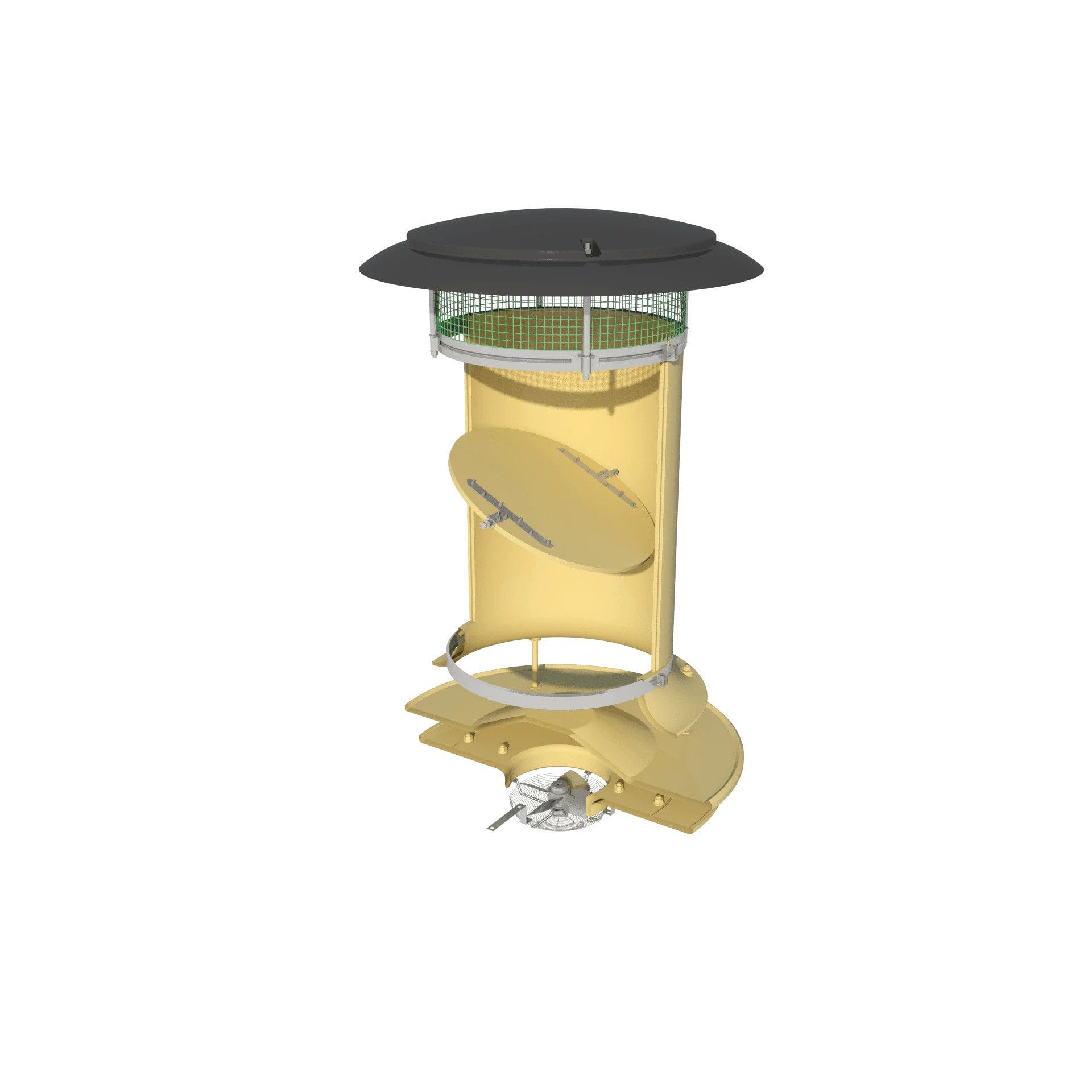

  • Mixing Inlet Chimney
    Available 64cm, 72cm, 82cm, 92cm

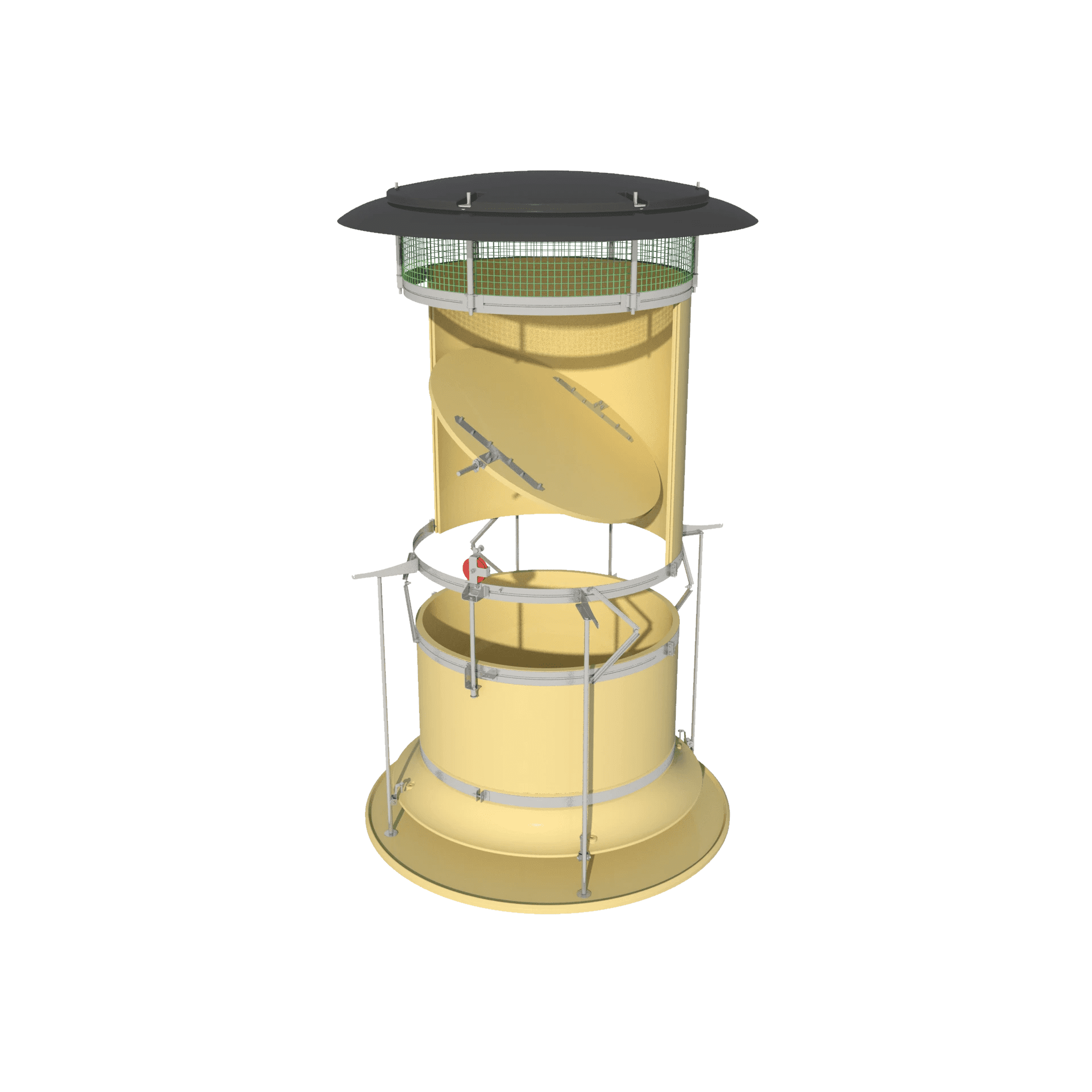

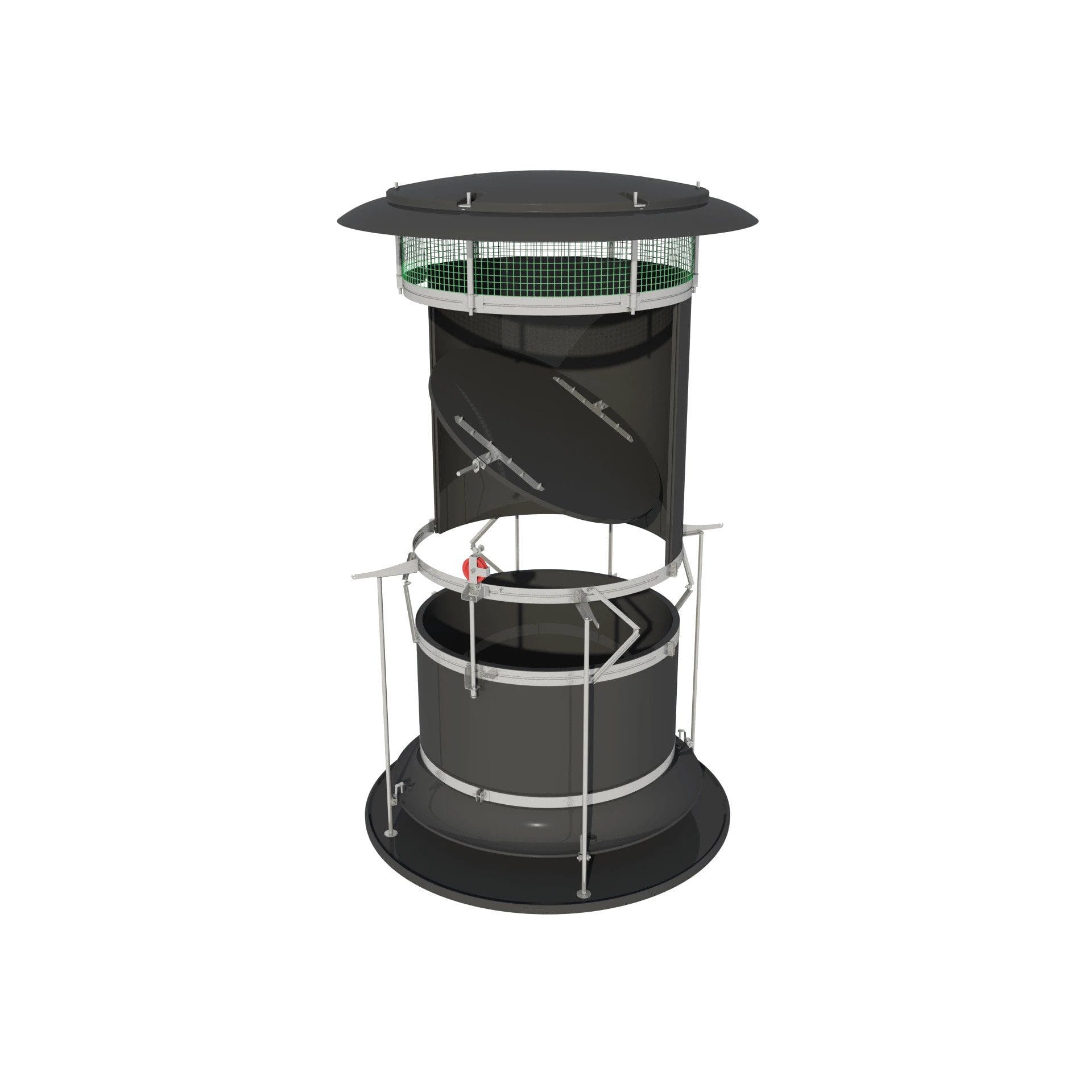

Automatic Recirculation Chimney

The re-circulation opening can be increased or decreased to allow more warm air to be mixed with cold air. In the top part of the chimney, there is an adjustment valve to control exactly how much fresh air is taken in from outside. At the time of minimum ventilation, when the re-circulation element is opened to the maximum the space between the air guide and diffuser plate is reduced to optimize airspeed. This helps to create a good throw of air and prevents cold air from dropping onto the animals at lower capacities during cold periods.
