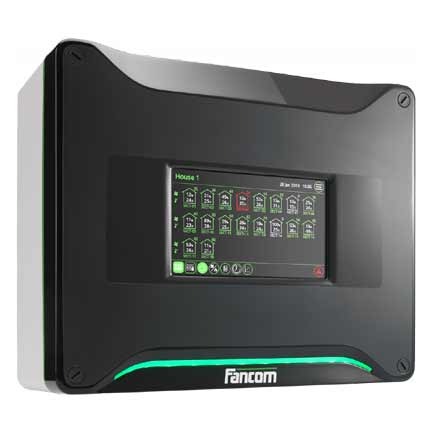

Lumina 21 Touch Hog Ventilation Computer for max. 24 sections

Lumina 21 Ventilation Computer, one central computer for 8 – 24 pig sections.  Intelligent climate control with many extra control functions and easy to use.

The Lumina 20 and the Lumina 21 are computers which control the ventilation in 8 – 24 pig sections.  No matter how large your house is, one Lumina 20 or Lumina 21 controller is all you need for accurate and energy efficient climate control in all sections.  The main features include the simple operation, the huge number of functions and the intelligent climate control.

One central computer:

• Choose the convenience of one central operating unit for the entire house.
• The Lumina 21 uses IVM Ventilation Endstations with temperature readouts for each section.
• The Lumina 20 has extra inputs and outputs so that all the climate units in 8 – 10 sections can be directly connected to the computer.

Intelligent climate control:

• Using OptiSec™, the controller uses a number of basis settings to select the most effective settings for air inlet, air exhaust, heating and humidity or cooling.
• Energy saving central exhaust is based on optimal pressure or demand.
• You can always be sure there is enough fresh air at the animal’s level with minimum energy consumption.
• The Lumina 21 automatically takes the outside conditions into account and compensates for seasonal influences.
• Ventilation based on either animal weight in cubic meters or percentages.

Many extra control functions:

• Intelligent central air control.
• EasyFeed™ feed control gives insight in daily feed consumption.
• Extensive management data.
• Signals warn of malfunctions. Easy to use.
• Large display with pictograms shows an overview of the entire house at a glance.
• Fully customizable, so only the settings you use will be displayed.
• The main data of all sections can be accessed immediately using one key.
• Remote control is possible using your smartphone or PC.

The Lumina 21 is a climate controller for pig houses. The control computer is versatile and suitable for a wide range of climatic conditions. The control computer supports the following ventilation systems:

• PowerFlow™
• EasyFlow™
• NatuFlow™
• CentralFlow™

Characteristics of the Lumina 21:

• Completely computerized climate control based on the animals’ lifecycle.
• Animal management: registration of set up, delivery and animal mortality.
• Control of external equipment using time clocks.  Registration of consumption (e.g. gas or electricity) based on feedback information.
• Extensive (and partially adjustable) alarm system, enabling immediate intervention if a process does not proceed as expected.
• Including EasyFeed™ efficient control of simple dry feed installations.

Features:

• User-friendly user interface, graphic display, with variable menu.
• Simple, direct operation of the most important climate and management data.
• Access with optional password protection up to 3 different levels (normal user, advanced user and installer).
• Alarm on i.e. temperature, RH, DSR feedback, and power failure.
• Totally 28 external alarm inputs, 4 central and 24 for compartments (1 per compartment).
• Temperature differential signaling for giving a signal to an external automatic fire alarm system (AFAS).
