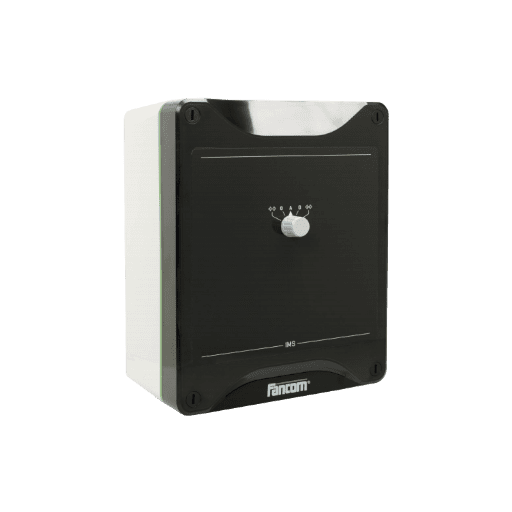

IMS

Provides manual or automatic control of a 1phase or 3phase motor with potentiometer/cps feedback over IONet or with analog signal.



Inputs
• 4k7Ω potentiometer or cps
• 30vac / 60vdc (limit switches)
○ 1phase: 230vac
○ 3phase: 400vac
○ IONet
○ 0-10v (control signal or temperature sensor)
○ (power fail contact)

Outputs
○ 1phase: 230vac, 4A (x2 for open / close)
○ 3phase: 400vac, 4A (x2 for open / close)
