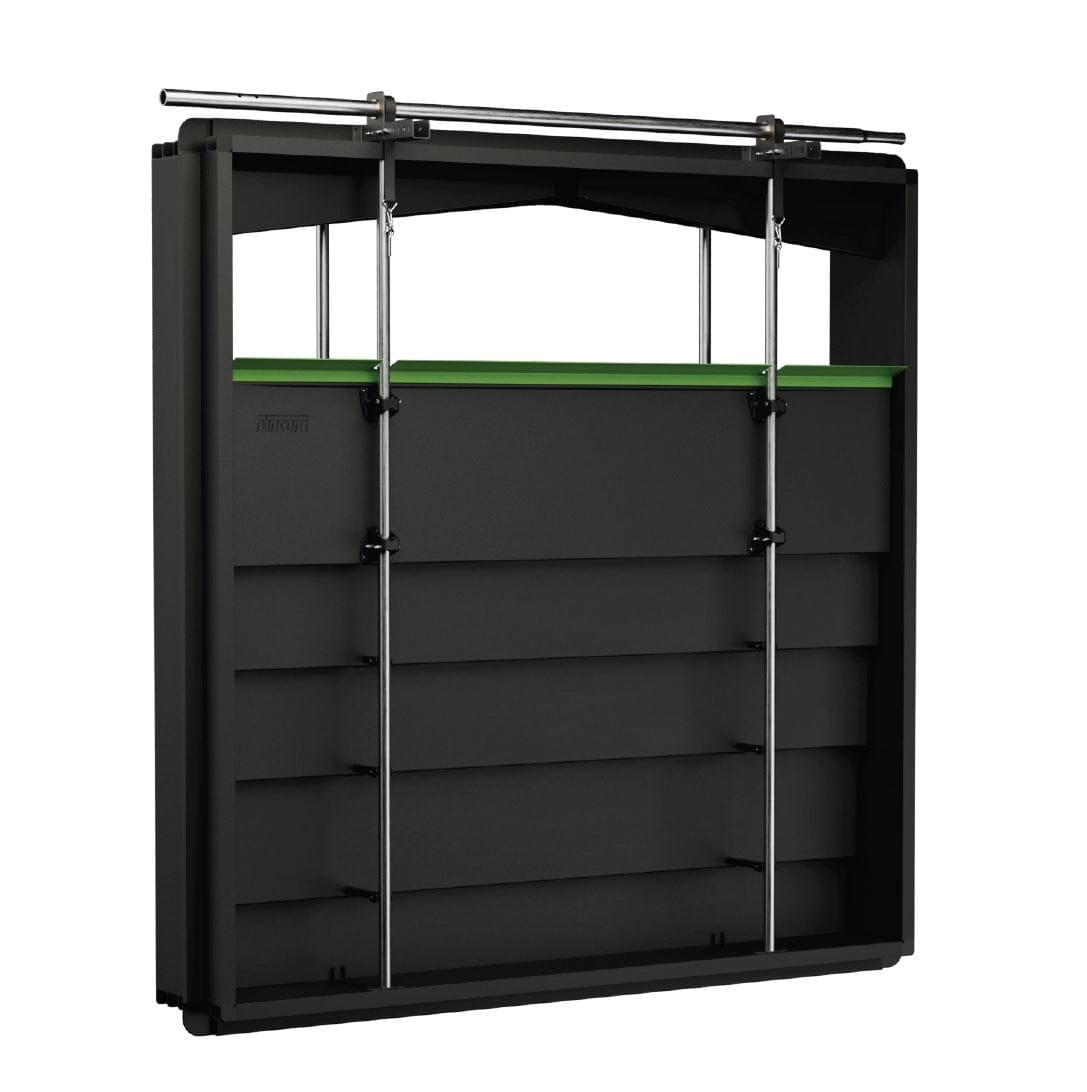

Fantura Tunnel Inlet

Fancom offers a unique Fantura air inlet system that is distinguished by the special shape of the valve.  This bundles the incoming air for a better throw.  Fantura tunnel inlet ensures a constant and even supply of fresh air in the house under all circumstances.  The special design puts an end to cold air dropping down onto your animals.  Furthermore, the litter stays nice and dry, preventing leg problems.  Your animals stay healthy and grow better.  The consistent growth conditions improve uniformity.  The Fantura air inlet system consists of an air inlet, an intelligent drive motor and a smart control computer.

The Fancom Fantura tunnel inlet has been specially developed for applications in systems with Tunnel ventilation such as the Fancom MTT ventilation concept.  MTT is a frequently used ventilation system worldwide.  With the increasingly warmer summers, the focus on cooling is increased.  MTT cools using the air flow velocity and no moisture is introduced into the house.  A drawback of traditional tunnel inlets is that when the tunnel inlets are switched on, all slats open simultaneously and immediately the air passes directly over the animals.  The Fantura tunnel inlet opens from top to bottom and the incoming air only passes directly over the animals when the Fantura tunnel inlet is fully open. An additional advantage of the Fantura tunnel inlet is that no extra inlets are required for minimum ventilation.

Features:

• The Fantura tunnel inlet can be used in pig and poultry houses with every type of ceiling (sloped or flat).
• Fresh air in the whole house, even with minimum ventilation.
• The Fantura tunnel inlet aperture provides a powerful throw even with a low capacity.  It prevents that the cold air flows directly in the direction of the animals.
• Part of the Fantura tunnel inlet can also be used for minimum ventilation.  It is therefore not necessary to place normal inlets above the Fantura tunnel inlet for the minimum ventilation (often there is no space for it).
• Qlon seals prevents leakages.
• The inlets are made of isolated polyurethane.
• Optimal air flow guaranteed with both minimum and maximum ventilation.
• Low air resistance and high/highest capacity per cm² due to one large opening without interruption by slates.
• The Fantura tunnel inlet has the same capacity as a box fan.
• Multiple tunnel inlets can be driven with one drive motor.
• The Fantura tunnel inlet works only in combination with the Fancom iM.125 winches due to number of rotations and Fantura functionality.
• Easily mounted in any type of wall.
• The tunnel inlets are supplied with two drive rods of 1.8 meters for easy mounting.  The two drive rods can be used to bridge gaps between tunnels.
• Easy to clean for optimal hygiene (be careful with high-pressure cleaning, maximum pressure: 100-120 bar, minimum spray distance: 40 cm or 15.7 inches).
• Available with a wide range of accessories.
• The Fantura tunnel inlet is delivered as a kit, which saves transport costs.

• Fantura tunnel inlet, 4409188
• Fantura tunnel inlet short, 4409223
