Fantura Wall Inlet – minus 5 / minus 35

The Fantura inlets are part of the Fantura air inlet system designed to create optimal climate conditions in pig and poultry houses.  The Fancom Fantura air inlet system is applied in closed houses which use an under pressure ventilation system.  The system consist of a special designed actuator (iM.60 or iM.125) and Fantura inlets.  The Fantura inlets are air inlets for wall mounting.  The unique air inlet system ensures a constant, even supply of fresh air into the house in all conditions.  The special design puts an end to cold air dropping down onto your animals and the litter stays nice and dry, avoiding foot problems.  Your animals stay healthy and grow better, and the consistent growth conditions improve uniformity.  The design of the inlet consists of a integrated jet stream on the inlet which changes the shape of the inlet opening to a compact, rectangular aperture.  The incoming air is bundled, creating a better throw, and is directed to the ridge of the house where it can mix with the warm air inside the house.  In relation with the unique design, the capacity is not linear with the opening of the air inlet.  For this reason, it is not possible to use an arbitrary actuator.  Especially for this application, Fancom has developed two types of actuators: the iM.60 and iM.125 winch.  These actuators can also be used with a transitional air intake system.  When the local absolute outside temperature / incoming air temperature is not lower than -5°C (23°F) for poultry and pigs, the Fantura inlet > -5.0 °C is suitable otherwise use the > -35.0 °C.

Features:

• Inlets can be used in pig and poultry houses with every slope of ceiling and flat ceiling.
• Inlets are flange built- in.
• The flap of the Fantura inlet > -5,0°C is insulated with expanded polystyrene.
• The Fantura inlet > -35,0°C is completely made of polyurethane.
• Fresh air throughout the house even with minimum ventilation.
• By the use of sealings there are no leakages.
• No need to close a part of the inlets at minimum ventilation (less labor).
• Also at maximum ventilation an optimum airflow is guaranteed.
• The air inlets are spring closed making them 100% close in the closed position.
• The air inlets are bottom hinged.
• Air inlets are standard provided with a netting.
• Air inlets are standard provided with a connection set.
• Easily mounted on each type of wall.
• The air inlets are provided with a bracket for the main cable or rod making mounting easier.
• Easy to clean for optimal hygiene (caution is advised with high-pressure cleaning – Maximum pressure: 100-120 bar, minimum spray distance: 40 cm or 15.7 inches).
• A complete range of accessories (like light filters and windhoods) is available.

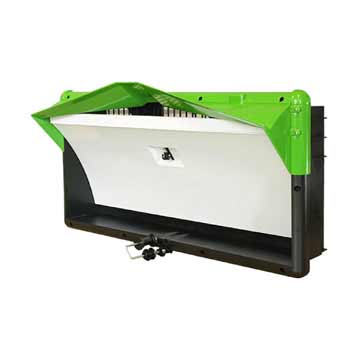

• Fantura Air Inlet less than -5.0 Degrees Celsius (23 Degrees Fahrenheit), 4409165
• Fantura Air Inlet, -35 Degrees Celsius (-31 Fahrenheit) includes connection set and netting, 4409170
• Fantura Air Inlet, -35 Degrees Celsius (-31 Fahrenheit) with casing (with a flat backside for easier finish), 4409171
