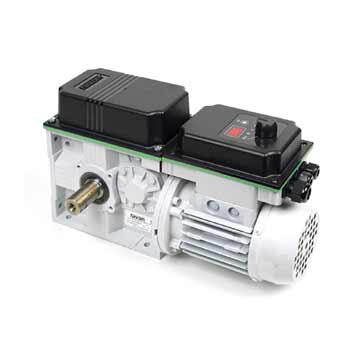

iM.125 Winch 1 Phase, 200-230V 60Hz

The Fancom iM.125 winch is used to control air inlet systems.  In combination with a Fancom controller and the Fantura air inlet this actuator provides a perfect air intake system where you do not have to worry.  A rotary switch enables an easy selection of the type of air inlets you have connected (Fantura air
inlets or Fancom Greenline inlets for example).

Features:

• The iM.125 can be used for controlling the Fantura air intake system, traditional air intake system and curtains.
• Also can be used as a winch, for example water and feedlines.
• Dual-driven shaft, to which a cable reel or pipe/chain connection can be mounted.
• When this unit is installed within reach (lower than 2.5 m above subsurface) of humans or animals a CE protection cover is available.
• The iM.125 can be controlled with a 0-10V/10-0V voltage input for an analog control OR controlled with a digital control via the I/O-Network*.  No signal loss.  Saves an analog output on the controller.   * Maximum 31 network modules per I/O-Network.
• Built-in digital feedback for position feedback.  By the lack of a carbon track, used in a traditional feedback, the lifetime is far longer.
• The iM.125 has an auto/manual switch with 5 positions (open – 0 – auto – 0 – closed).  The position of the switch determines the functioning of the actuator.
• Alarm relay.
• Extensive alarm via I/O-net and manual operations possibilities:
  • Via manual operation on the actuator.
  • Via external manual operation (with 10K potentiometer)
• Ability to calibrate the iM.125 without removing a cover by a push button.
• Built-in limit switches with easy adjustment of the end position without special tools.
• Open and robust set up for the different components.  Easy access and wiring.
• A temperature measurement that can also be used by a Fancom climate controller is available.  This option is only available if the iM.125 is controlled via I/O-net.
• 7-segment display that displays the status of the program.  This makes adjustment of the actuator a lot easier.
• The iM.125 is maintenance free.
• Self-recovering thermal protection (clixon) which switches off the actuator in the event of overheating.  The actuator will automatically re-activate when it has cooled down.
• The actuator can be mounted in different positions.  A quick, easy and cheap installation is possible by placing pins through the corners of the housing (see LM mounting set, 5859007).
