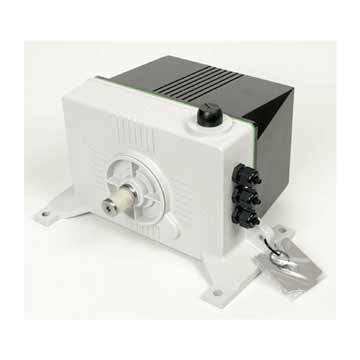

iM.60 Winch 24V/1-10v

The Fancom iM.60 is used to control air inlet systems.  In combination with a Fancom controller and the Fancom Fantura air inlets or Fancom Greenline inlets this actuator provides a perfect air intake system.  A rotary switch enables an easy selection of the type of the connected air inlets (Fantura air inlets or Fancom Greenline inlets).

• The iM.60 can be used for controlling the Fantura air intake system or a traditional air intake system.
• Brushless motor with a far longer service life due to the lack of a sensitive collector with carbon brushes.

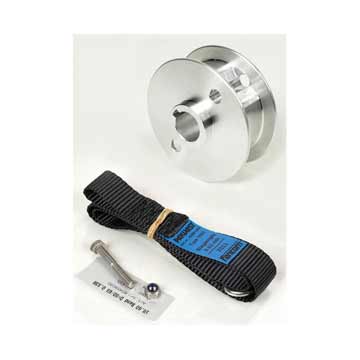

• Single-driven shaft, to which a cable reel, belt drum or pipe/chain connection can be mounted.
• For winches installed within reach (lower than 2.5 m above subsurface) of humans or animals a CE protection cover is available.
• The iM.60 can be controlled with a 0-10V/10-0V voltage input for an analogue control OR controlled with a digital control via the I/O-Network*.  No signal loss.  Saves an analogue output on the controller.     * Maximum 31 network modules per I/O-Network
• Built-in digital feedback for position feedback.  By the lack of a carbon track in a traditional feedback, the lifetime is far longer.
• Integrated mounting bracket and eye for double loop system.
• The iM.60 has an auto/manual switch with 5 positions (open – 0 – auto – 0 – closed).  The position of the switch determines the functioning of the actuator.
• Alarm relay.
• Extensive alarm via I/O-net and manual operations possibilities:
• Via manual operation on the actuator.
• Via external manual operation (manual control box)
• Optional transparent cover to enable the readout of the alarm status on the iM.60.
• Built-in limit switches with easy adjustment of the end position without special tools.
• In the event of a power failure the control of the iM.60 can continue, depending on the method of controlling, using the optional alarm power supply.
• In the event of a power failure the iM.60 opens to a predefined (adjustable) position using the optional alarm power supply.
• Possibility to connect a maximum thermostat as an extra security.  The air intake will open completely whenever the maximum thermostat is activated.
• Open and robust set up for the different components.  Easy access and wiring.
• A temperature measurement that can also be used by a Fancom climate controller is available.  This option is only available if the iM.60 is controlled via I/O-net.
• Internal 7-segment display that displays the status of the program.  This makes adjustment of the actuator a lot easier.
• Overload protection using a self-recovering current limiter.
• Tensile force depends on cable type, cable length and power supply.
